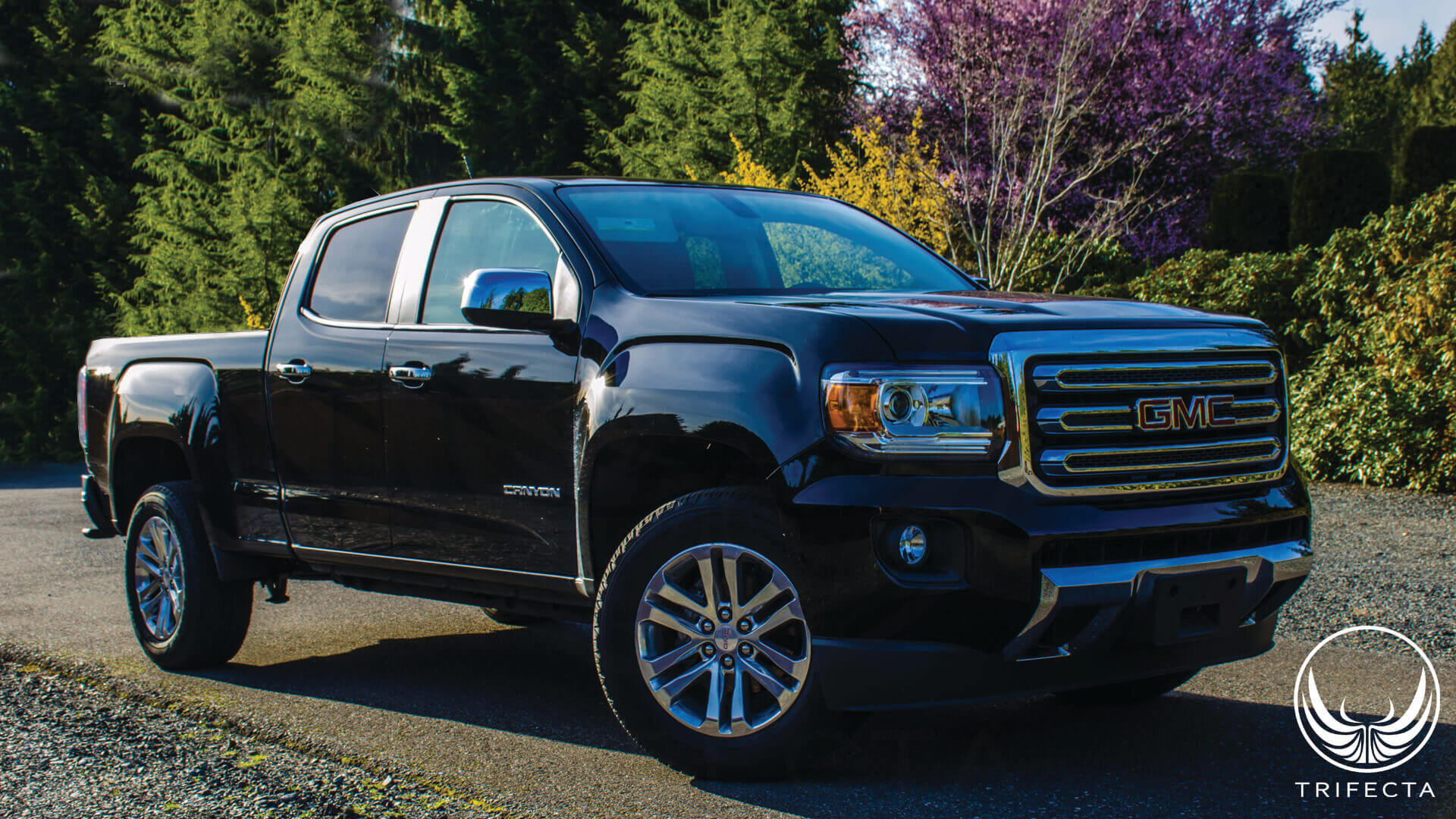

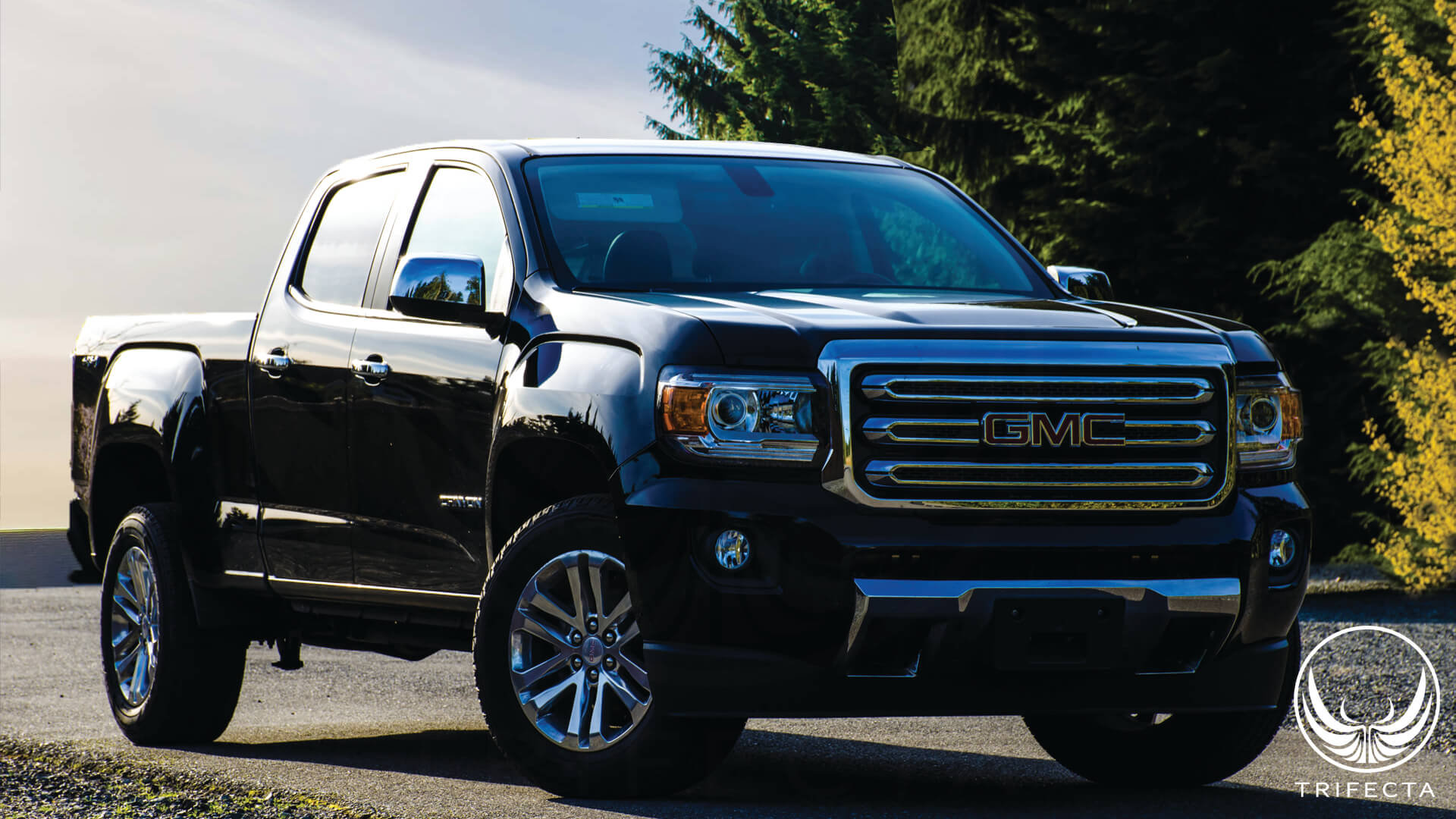

About 2015--2016 GMC Canyon - 3.6L - Elite

TRIFECTA presents: Chevrolet Colorado / GMC Canyon MY2015+ Powertrain Calibration Reprogramming
TRIFECTA presents a complete powertrain power delivery profile calibration for the MY2015+ Chevrolet Colorado / GMC Canyon LFX engine and corresponding 6L50 automatic transmission reprogramming. The TRIFECTA Performance Chevrolet Colorado LFX 3.6 and GMC Canyon LFX 3.6 MY2015+ powertrain calibration is an easy to install software performance calibration with an included flash loader device that will yield gains of up to +31 ft-lbs and +27 WHP (Peak gains of up to +26 ft-lbs and +21 WHP) to a completely stock GMC Canyon LFX 3.6 MY2015.


The TRIFECTA Elite Powertrain Calibration with Individualization (Custom Profiling) for the MY2015+ Chevrolet Colorado / GMC Canyon LFX includes calibration individualization, remote diagnostics, and comprehensive aftermarket hardware software integration support. (includes a TRIFECTA flash loader)


Specifications of the TRIFECTA Performance Chevrolet Colorado MY2015+ and GMC Canyon MY2015+ 3.6 LFX ECM software reprogramming:


-gains of up to +31 ft-lbs and +27 WHP under the curve (and +26 ft-lbs and +21 WHP peak on 91 octane)
-Powertrain calibration has been tested and validated for various environments, such as cold/heat, elevation, and variations in fuel quality
-Power feels linear and immediately responsive (improved drivability and throttle attentiveness)
-Retains all GM OE diagnostics and ECM functionality
-Retains all OE error code reporting and functionality
-Emissions readiness checks are present; emissions compliant
-Maintains functionality of ABS and TC systems
-Knock detection mechanisms and OE engine knock detection sensitivity is retained
-The TRIFECTA flash loader and Transparency featureset does not increment the ECM write counter or increment entries in the flash history
-Return to stock functionality included with flash loader


Specifications of the TRIFECTA Performance MY2015+ Chevrolet Colorado / GMC Canyon 6L50 6-Speed automatic transmission TCM calibration software reprogramming:


-Supplementary 6L50 transmission TCM reprogramming compliments the ECM reprogramming and completes the TRIFECTA Powertrain Calibration: designed to work in unison with the ECM reprogramming for optimized performance
-Improved shift times in adverse shift patterns
-Improved shift logic (improved drivability)
-Does not shorten transmission life or increase cooling requirements
-Retains all OE diagnostics and TCM functionality
-Retains all OE error code reporting and functionality
-Improved fuel economy with improvements made to torque converter slip profiles


Supplementary Featureset of the TRIFECTA Performance MY2015+ Chevrolet Colorado / GMC Canyon powertrain calibration software reprogramming:


-TRIFECTA Interactive Driver Selectable Vehicle Mode (Select-a-Tune MKII); NEW! Dedicated ECO Mode: Toggle between Tour and ECO mode via the Cruise Control arm states
-TRIFECTA ECO Mode: Up to 2.8 MPG improvement by dedicated TRIFECTA ECO mode prioritizing fuel economy in engine calibration profile and transmission shift strategy
-Alternative Driver Profiles layout included with individualized calibration (OPTIONAL): Allows on the fly Driver Profile switching back to OE settings/profile (Select-a-Tune MKI can allows the driver to select between the calibrated and stock drive experience and power output)
-TRIFECTA Octane Adaptive MKII featureset will bias for lower octane fuels (multi dimensional airflow knock and timing decay tables, not just high/low)
-Improved fuel economy while towing with alternative TOW/HAUL mode


Installation Notes:


-Estimated installation time of ~20 minutes
-Premium fuel is recommended for maximum power output, but not required

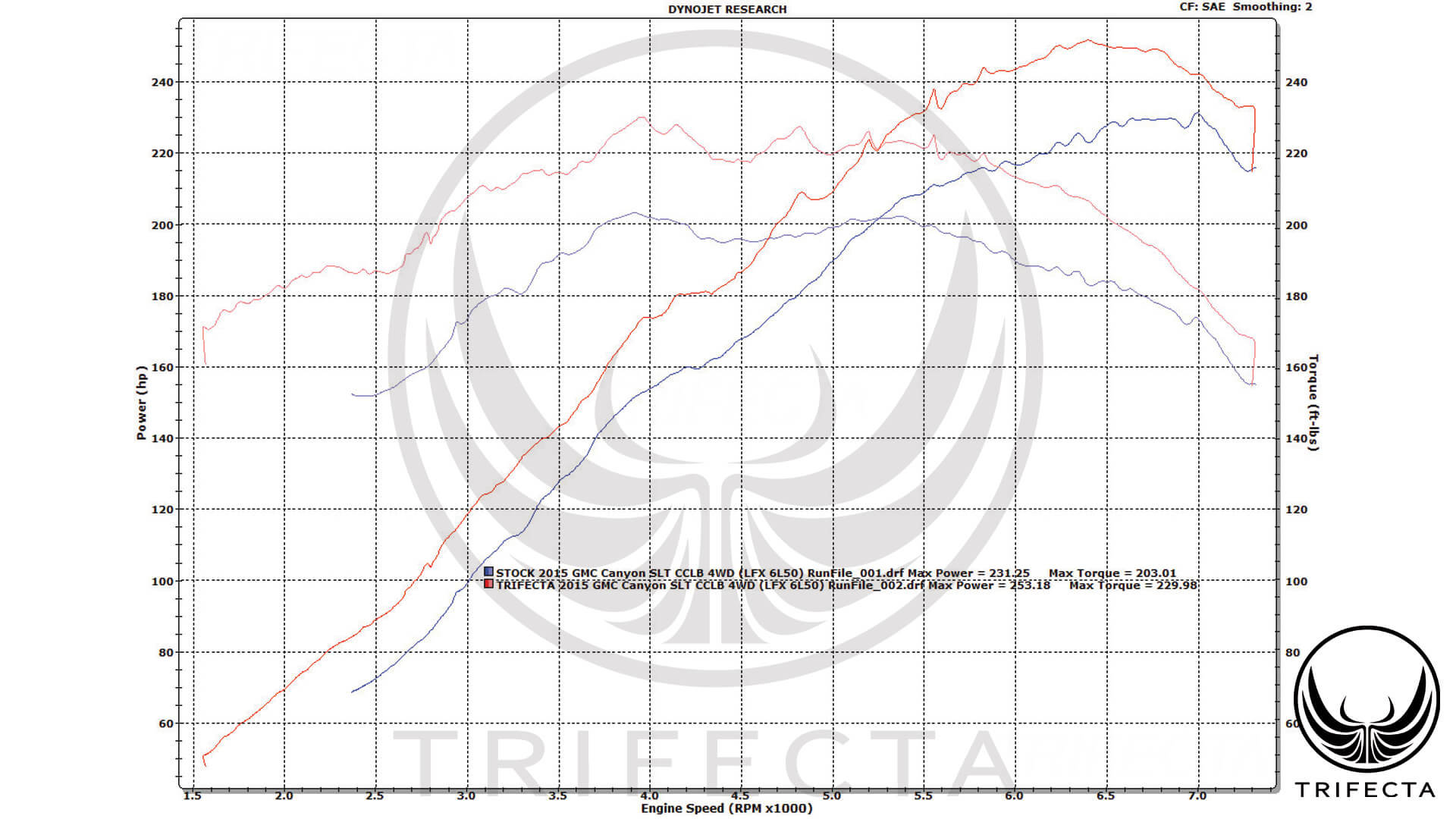

3.6 LFX dyno graph (on 91 octane pump gas) (this vehicle is a 2015 GMC Canyon CrewCab 2LT with a 3.6 LFX engine) - stock wheels/tires


Additional information and availability:

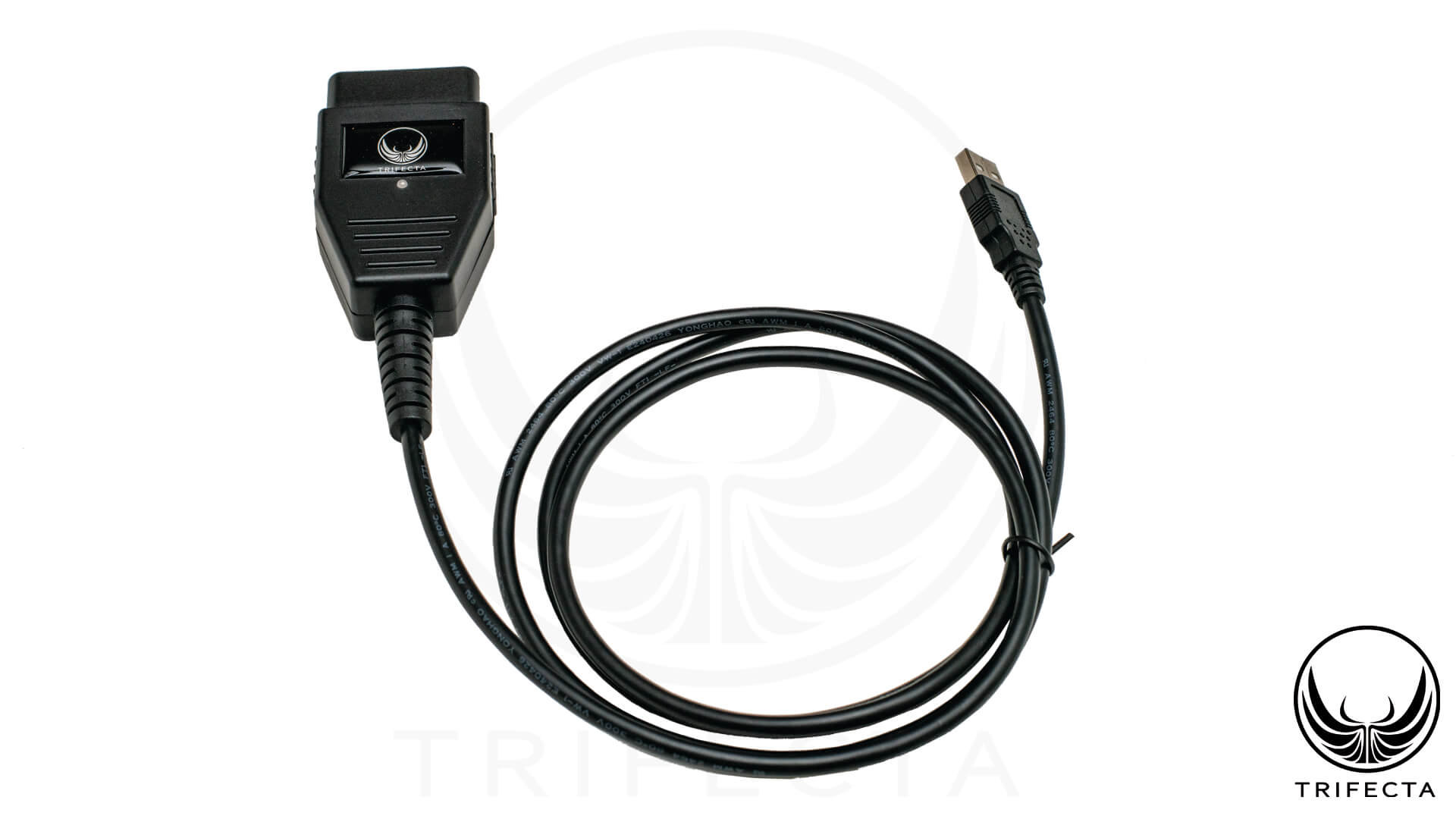

-This powertrain calibration includes a TRIFECTA powertrain calibration file specific to your vehicle and includes a flash loader device
-Powertrain calibrations currently exist for North American vehicles only, with more regions to follow

Shipping Options

Shipping options and prices may vary depending on the total value of your order. Your final shipping price will be determined at checkout.

Options shown are based on your estimated location.

  • $15.00 - Ground (United States) (1-5 days)
  • $40.00 - 2nd Business Day (M-F, No Sat/Sun Delivery, US Only) (2 business days)
  • $80.00 - Next Business Day (M-F, No Sat/Sun Delivery, US Only) (1 business day)
  • FREE - I already own an EZ Flash cable. (Cable must have TRIFECTA logo sticker)

Shipping Size

  • Size
    8.69 in × 5.44 in × 1.75 in
  • Weight
    1 lb



I purchased this tune for my Canyon and could not be more pleased with the results. I really like being able to choose between a power mode and an economy mode. I took 2 long distance trips and in the economy mode I was seeing 28mpg, that was all highway driving. A 50/50 split of highway/city I will see 21-22 mpg. In the power mode, this tune really wakes up this motor. Power comes on hard, and shifts are crisp. Mash the throttle at highway speed, and the downshifts are instant and the power comes on hard and strong all the way to red line. Also a nice improvement when pulling a trailer.
