2014--2019 Cadillac CTS - 2.0L Turbo - Advantage

(5 reviews)
$529
TRIFECTA is pleased to announce the immediate availability of the 2014--2019 Cadillac CTS vehicle software recalibration (reflash) for vehicles utilizing the 2.0L Turbocharged engine with either the 8 speed automatic transmission (8L45 / RPO:MYA) or 6 speed automatic transmission (6L45 / RPO: MYA). Rear wheel drive (RWD) and all wheel drive (AWD) variants are supported. Specific gains over factory calibration are up to (SAE corrected) 52lb-ft of torque and 36 horsepower, with peak gains clocking in at up to 40lb-ft of torque and 22 horsepower, with no vehicle modifications beyond the calibration.

TRIFECTA's 2014--2019 Cadillac CTS recalibration is complimented by a fully developed 8-speed or 6-speed transmission calibration to support the increased power delivery profile and to offer dramatically improved driving characteristics from everyday driving maneuvers to track performance. The complete powertrain calibration also includes ESC (Stabilitrak) and, for all wheel drive (AWD) equipped models, TCCM (transfer case control module) program enhancements.


Specifications of the TRIFECTA Performance 2014--2019 Cadillac CTS ECM software reprogramming:
Fuel economy is improved (up to 2MPG observed), dependent on fuel grade and driving conditions Retains all GM OE diagnostics and ECM functionality Retains all OE error code reporting and functionality Emissions readiness checks are present; emissions compliant Maintains functionality of ABS and TC systems Knock detection mechanisms and OE engine knock detection sensitivity is retained Return to stock functionality included with EZ Flash cable and software
Specifications of the TRIFECTA Performance 2014--2019 Cadillac CTS 8-Speed and 6-Speed automatic transmission TCM calibration software reprogramming:
Improved vehicle drive modes (Tour, Sport, Winter) Improved shift times in adverse shift patterns Improved shift logic - shifts are progressive and purposeful Full integration with factory predictive-shifting algorithm in Sport mode Does not shorten transmission life or increase cooling requirements Retains all OE diagnostics and TCM functionality Retains all OE error code reporting and functionality
Additional Features:
Long term cumulative mileage testing, extended high load dyno testing. Powertrain calibration has been tested and validated for various environments, such as cold/heat, elevation, and variations in fuel quality Octane Adaptive construct enables multi-phased timing tables: Five distinct timing tables replace the OE GM implementation of high/low octane tables Multi-dimensional Airflow Coefficient tables, adds air pressure bias and knock history overlay for enhanced accuracy in boost scenarios Virtualized torque prediction coefficients recalculation model added Airflow based commanded fuel ratio strategies added Multi-stage knock sensor decay and recovery rate tables added This powertrain calibration includes a TRIFECTA powertrain calibration file specific to your vehicle and includes an EZ Flash Cable (TFEZ010U) Premium fuel required for maximum performance and economy TRIFECTA Advantage:
If your vehicle is stock, or has certain modifications which "just work" and do not require tuning, you can simply plug and play with our TRIFECTA Advantage calibration. Advantage customers receive full customer support for as long as they own their vehicle. Custom tuning is not offered at this tier, and the price reflects it. It is a great entry level option if you want to get the most potential out of your vehicle with just one mod!


Read more...

Need help? Have a question for us?

Contact Us



  • 17 Digit Vehicle Identification Number.

    Must be exactly 17 digits, 9th digit must be 0--9 or 'X', and cannot contain characters 'I', 'O', or 'Q'.

    We recommend acquiring the VIN directly from the vehicle's VIN Plaque on the dash, or the certification label in the door jamb since insurance and service documents are sometimes incorrect.

  • Please contact support prior to purchasing if you have any questions: Contact Us

  • Support is not officially provided for aftermarket hardware with this calibration, however many hardware components which would normally work without any specific adjustment on the factory calibration may be automatically compatible.

    Examples include:

    -Most Exhaust components

    -Recirculated turbo bypass valves

    -Most brand name intakes (ONLY with any included resonator/venturi designed to prevent the intake from setting any DTCs (Diagnostic Trouble Codes).

    If you are not sure whether your hardware is compatible with TRIFECTA Advantage, please Contact Us for assistance!

 Share

About 2014--2019 Cadillac CTS - 2.0L Turbo - Advantage

TRIFECTA is pleased to announce the immediate availability of the 2014--2019 Cadillac CTS vehicle software recalibration (reflash) for vehicles utilizing the 2.0L Turbocharged engine with either the 8 speed automatic transmission (8L45 / RPO:MYA) or 6 speed automatic transmission (6L45 / RPO: MYA). Rear wheel drive (RWD) and all wheel drive (AWD) variants are supported. Specific gains over factory calibration are up to (SAE corrected) 52lb-ft of torque and 36 horsepower, with peak gains clocking in at up to 40lb-ft of torque and 22 horsepower, with no vehicle modifications beyond the calibration.



TRIFECTA's 2014--2019 Cadillac CTS recalibration is complimented by a fully developed 8-speed or 6-speed transmission calibration to support the increased power delivery profile and to offer dramatically improved driving characteristics from everyday driving maneuvers to track performance. The complete powertrain calibration also includes ESC (Stabilitrak) and, for all wheel drive (AWD) equipped models, TCCM (transfer case control module) program enhancements.


Specifications of the TRIFECTA Performance 2014--2019 Cadillac CTS ECM software reprogramming:

  • Fuel economy is improved (up to 2MPG observed), dependent on fuel grade and driving conditions
  • Retains all GM OE diagnostics and ECM functionality
  • Retains all OE error code reporting and functionality
  • Emissions readiness checks are present; emissions compliant
  • Maintains functionality of ABS and TC systems
  • Knock detection mechanisms and OE engine knock detection sensitivity is retained
  • Return to stock functionality included with EZ Flash cable and software


Specifications of the TRIFECTA Performance 2014--2019 Cadillac CTS 8-Speed and 6-Speed automatic transmission TCM calibration software reprogramming:

  • Improved vehicle drive modes (Tour, Sport, Winter)
  • Improved shift times in adverse shift patterns
  • Improved shift logic - shifts are progressive and purposeful
  • Full integration with factory predictive-shifting algorithm in Sport mode
  • Does not shorten transmission life or increase cooling requirements
  • Retains all OE diagnostics and TCM functionality
  • Retains all OE error code reporting and functionality


Additional Features:

  • Long term cumulative mileage testing, extended high load dyno testing.
  • Powertrain calibration has been tested and validated for various environments, such as cold/heat, elevation, and variations in fuel quality
  • Octane Adaptive construct enables multi-phased timing tables: Five distinct timing tables replace the OE GM implementation of high/low octane tables
  • Multi-dimensional Airflow Coefficient tables, adds air pressure bias and knock history overlay for enhanced accuracy in boost scenarios
  • Virtualized torque prediction coefficients recalculation model added
  • Airflow based commanded fuel ratio strategies added
  • Multi-stage knock sensor decay and recovery rate tables added

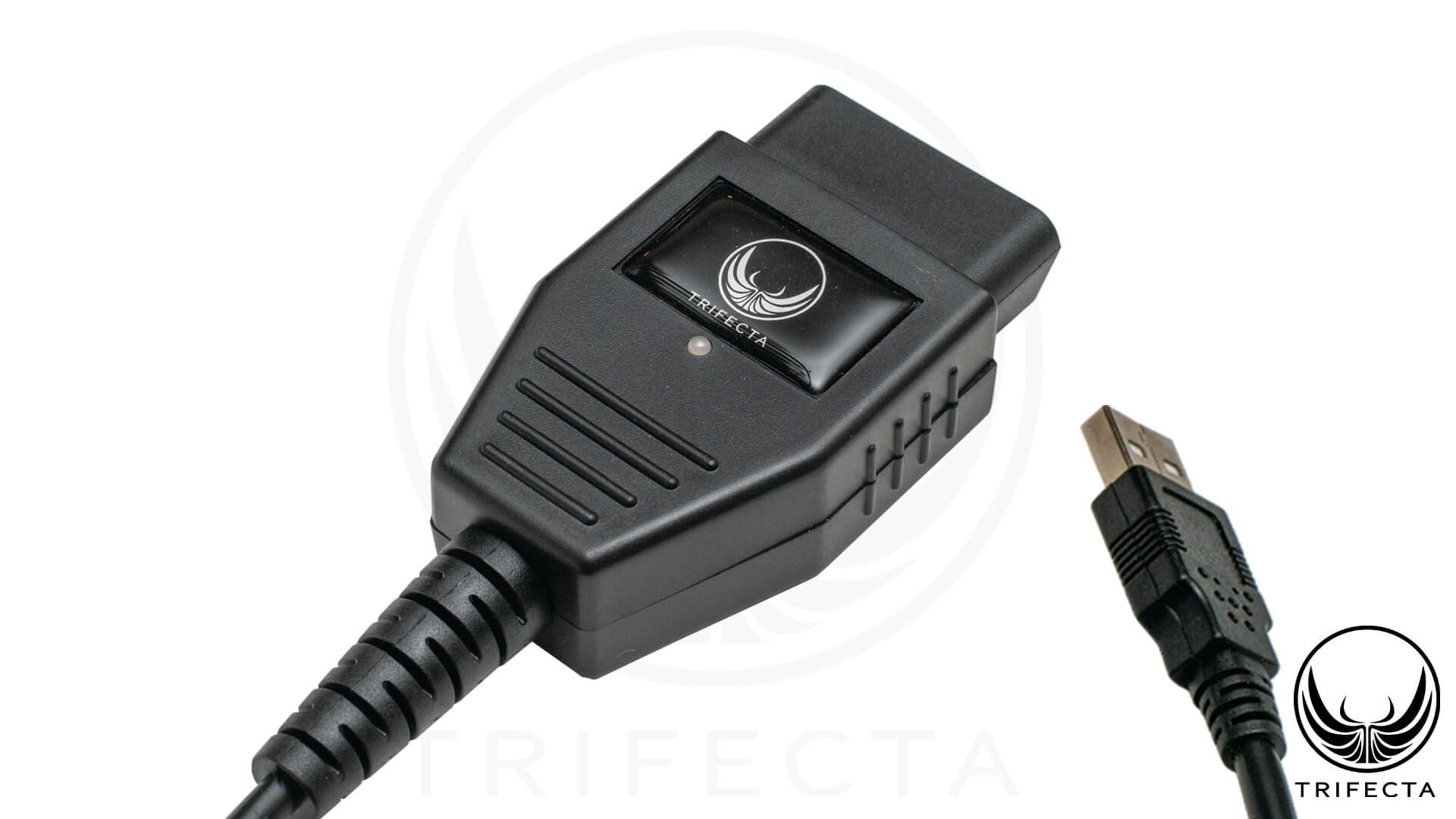

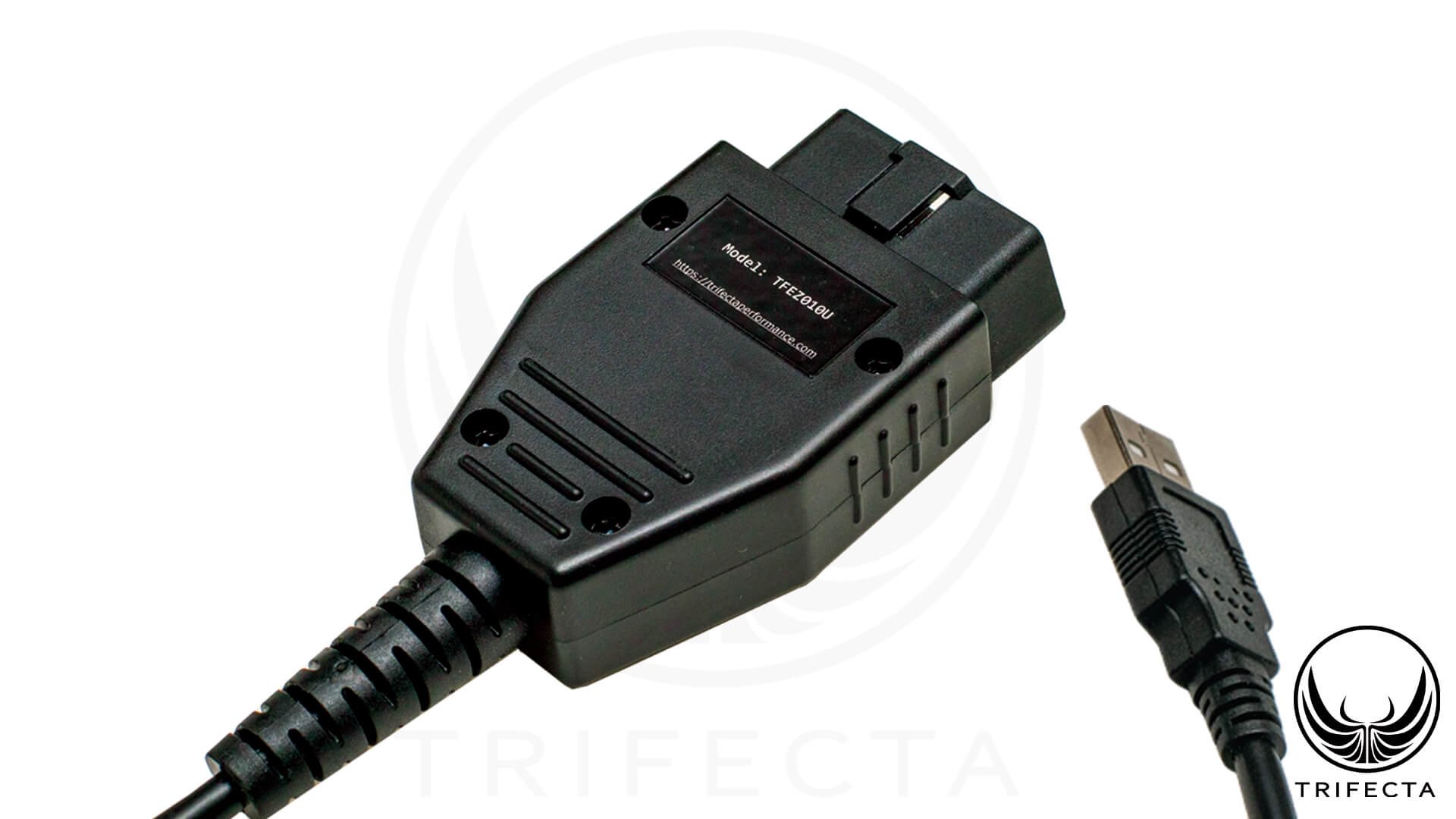

  • This powertrain calibration includes a TRIFECTA powertrain calibration file specific to your vehicle and includes an EZ Flash Cable (TFEZ010U)
  • Premium fuel required for maximum performance and economy

TRIFECTA Advantage:

If your vehicle is stock, or has certain modifications which "just work" and do not require tuning, you can simply plug and play with our TRIFECTA Advantage calibration. Advantage customers receive full customer support for as long as they own their vehicle. Custom tuning is not offered at this tier, and the price reflects it. It is a great entry level option if you want to get the most potential out of your vehicle with just one mod!

Shipping Options

Shipping options and prices may vary depending on the total value of your order. Your final shipping price will be determined at checkout.

Options shown are based on your estimated location.

  • $85 - International (6-10 days)
  • FREE - I already own a Black TRIFECTA EZ Flash cable. (Cable must have TRIFECTA logo sticker. Black Cable ONLY. )

Shipping Size

  • Size
    8.69 in × 5.44 in × 1.75 in
  • Weight
    1 lb
