2013--2019 Cadillac ATS - 2.0L Turbo - Elite

(2 reviews)
$888.00

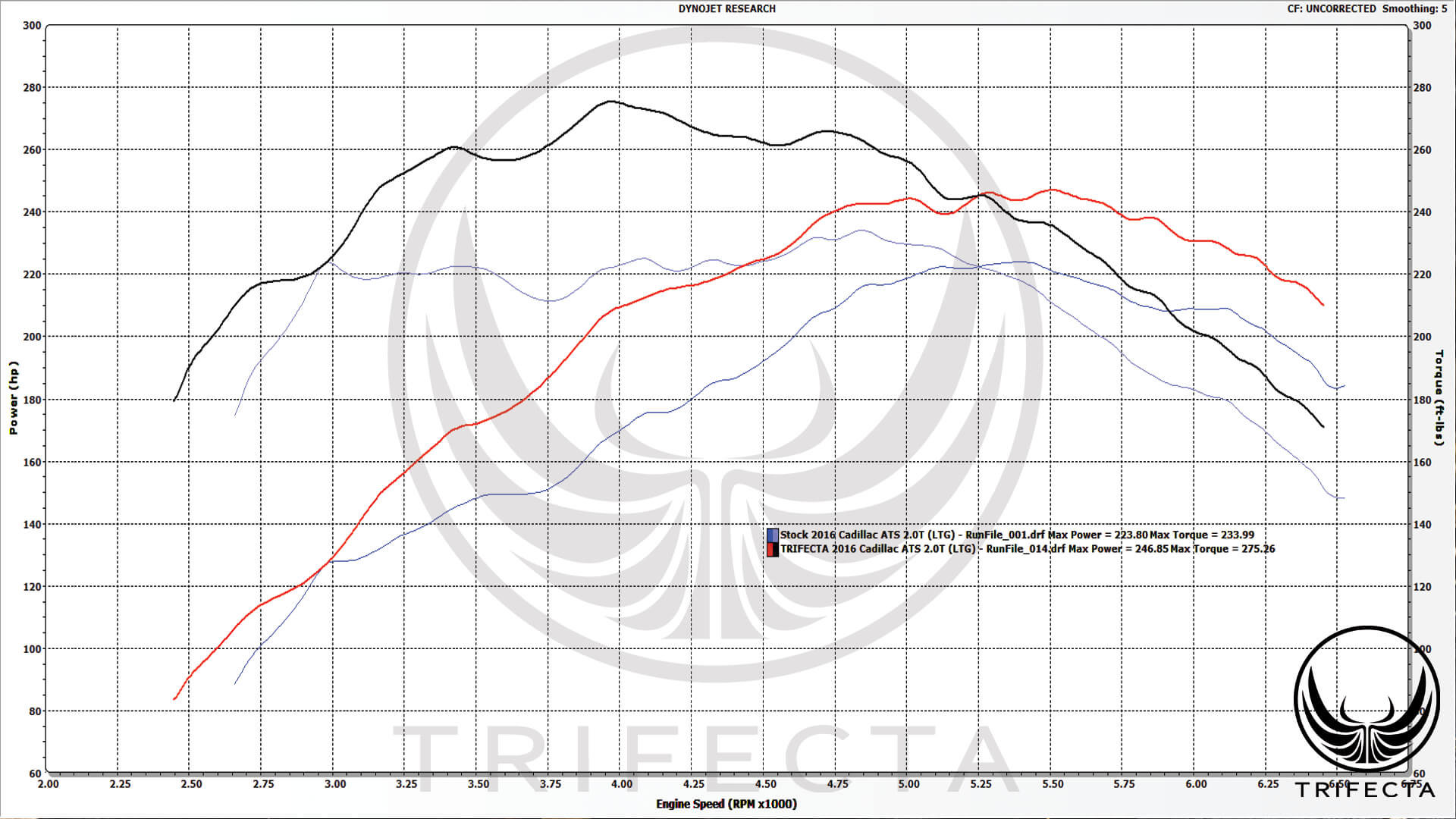

TRIFECTA is pleased to announce the immediate availability of the 2013--2019 Cadillac ATS vehicle software recalibration (reflash) for vehicles utilizing the 2.0L Turbocharged engine with either the 8 speed automatic transmission (8L45 / RPO:MYA), 6 speed automatic transmission (6L45 / RPO: MYA), or the 6 speed manual transmission (Tremec 6 / RPO:M3L). Rear wheel drive (RWD) and all wheel drive (AWD) variants are supported. Specific gains over factory calibration are up to (SAE corrected) 52lb-ft of torque and 36 horsepower, with peak gains clocking in at up to 40lb-ft of torque and 22 horsepower, with no vehicle modifications beyond the calibration.


TRIFECTA's 2013--2019 Cadillac ATS recalibration is complimented by a fully developed 8-speed or 6-speed transmission calibration to support the increased power delivery profile and to offer dramatically improved driving characteristics from everyday driving maneuvers to track performance. The complete powertrain calibration also includes ESC (Stabilitrak) and, for all wheel drive (AWD) equipped models, TCCM (transfer case control module) program enhancements.

Specifications of the TRIFECTA Performance 2013--2019 Cadillac ATS ECM software reprogramming:
Fuel economy is improved (up to 2MPG observed), dependent on fuel grade and driving conditions Retains all GM OE diagnostics and ECM functionality Retains all OE error code reporting and functionality Emissions readiness checks are present; emissions compliant Maintains functionality of ABS and TC systems Knock detection mechanisms and OE engine knock detection sensitivity is retained Return to stock functionality included with EZ Flash cable and software
Specifications of the TRIFECTA Performance 2013--2019 Cadillac ATS 8-Speed and 6-Speed automatic transmission TCM calibration software reprogramming:
2017 and up ATS models with the 8-Speed automatic transmission and T87A transmission control module (TCM) DO NOT require an UNLOCK. Improved vehicle drive modes (Tour, Sport, Winter) Improved shift times in adverse shift patterns Improved shift logic - shifts are progressive and purposeful Full integration with factory predictive-shifting algorithm in Sport mode Does not shorten transmission life or increase cooling requirements Retains all OE diagnostics and TCM functionality Retains all OE error code reporting and functionality
Additional Features:
Long term cumulative mileage testing, extended high load dyno testing. Powertrain calibration has been tested and validated for various environments, such as cold/heat, elevation, and variations in fuel quality Octane Adaptive construct enables multi-phased timing tables: Five distinct timing tables replace the OE GM implementation of high/low octane tables Multi-dimensional Airflow Coefficient tables, adds air pressure bias and knock history overlay for enhanced accuracy in boost scenarios Virtualized torque prediction coefficients recalculation model added Airflow based commanded fuel ratio strategies added Multi-stage knock sensor decay and recovery rate tables added This powertrain calibration includes a TRIFECTA powertrain calibration file specific to your vehicle and includes an EZ Flash Cable (TFEZ010U) Premium fuel required for maximum performance and economy TRIFECTA Elite:
The TRIFECTA Elite Powertrain Recalibration includes calibration individualization, remote diagnostics, and comprehensive aftermarket hardware software integration support.  If you have any modifications which require tune customization, or have special requests, our Elite tier offers unlimited updates for mods/requests for as long as you own the vehicle. There are no extra charges once you choose Elite, and if you have Advantage already, you can simply upgrade to Elite for the difference in price at any time.


Read more...

Need help? Have a question for us?

Contact Us



  • 17 Digit Vehicle Identification Number.

    Must be exactly 17 digits, 9th digit must be 0--9 or 'X', and cannot contain characters 'I', 'O', or 'Q'.

    We recommend acquiring the VIN directly from the vehicle's VIN Plaque on the dash, or the certification label in the door jamb since insurance and service documents are sometimes incorrect.

  • Your selection will inform how we set up your calibration initially, however all options are still calibrated via our remote tuning process.


  • While increasing the surface area of the intercooler can help with cooling, the total volume of the charge air cooling system must also be increased to accomplish this. When there is more volume in the system, the turbo will take longer to spool (known as "turbo lag"), and may benefit from calibration adjustments to improve spool as much as possible.


  • Leave blank for no adjustment

    e.g. Enter 62 if your GPS reads 62mph when your dash reads 60mph

    If you have aftermarket gears: The value for this field should be relative to the factory gears.

    • If you've upgraded to 4.10 gears, and the vehicle had 3.42 gears stock, then the GPS might read 50mph.

      60mph * (3.42/4.10) = 50mph, or no adjustment, so leave this field blank.

    • If you have aftermarket gears and larger tires that read 55mph, then you might end up with something like:

      55mph - (60mph * (3.42/4.10)) = 5mph skew

      5mph + 60mph = 65mph relative to stock gears.

    • If you have aftermarket gears which we have already issued a calibration for and are installing larger tires, then you can simply provide the GPS skew directly from your GPS device.

    For vehicles with aftermarket wheels and tires. Actual Speed (per GPS device) when Speedometer Indicates 60mph

    Larger numbers mean larger-than-stock tires, Smaller numbers mean smaller-than-stock tires.

    Requests for raising of speed limiter require photographic evidence of speed rating on tire sidewall, submitted via Support Request.

  • Choose Single File...
    Or drag and drop your file here

    We require a photo showing the speed rating on the tire sidewall as installed on the vehicle. The speed limiter will be raised in the calibration to match the speed rating of the tire.

    This field can be updated later under 'Manage Purchases'

  • Enter any modifications which don't fall under any of the available drop-down fields here.

  • Please contact support prior to purchasing if you have any questions: Contact Us
 Share

About 2013--2019 Cadillac ATS - 2.0L Turbo - Elite

TRIFECTA is pleased to announce the immediate availability of the 2013--2019 Cadillac ATS vehicle software recalibration (reflash) for vehicles utilizing the 2.0L Turbocharged engine with either the 8 speed automatic transmission (8L45 / RPO:MYA), 6 speed automatic transmission (6L45 / RPO: MYA), or the 6 speed manual transmission (Tremec 6 / RPO:M3L). Rear wheel drive (RWD) and all wheel drive (AWD) variants are supported. Specific gains over factory calibration are up to (SAE corrected) 52lb-ft of torque and 36 horsepower, with peak gains clocking in at up to 40lb-ft of torque and 22 horsepower, with no vehicle modifications beyond the calibration.

TRIFECTA's 2013--2019 Cadillac ATS recalibration is complimented by a fully developed 8-speed or 6-speed transmission calibration to support the increased power delivery profile and to offer dramatically improved driving characteristics from everyday driving maneuvers to track performance. The complete powertrain calibration also includes ESC (Stabilitrak) and, for all wheel drive (AWD) equipped models, TCCM (transfer case control module) program enhancements.



Specifications of the TRIFECTA Performance 2013--2019 Cadillac ATS ECM software reprogramming:

  • Fuel economy is improved (up to 2MPG observed), dependent on fuel grade and driving conditions
  • Retains all GM OE diagnostics and ECM functionality
  • Retains all OE error code reporting and functionality
  • Emissions readiness checks are present; emissions compliant
  • Maintains functionality of ABS and TC systems
  • Knock detection mechanisms and OE engine knock detection sensitivity is retained
  • Return to stock functionality included with EZ Flash cable and software



Specifications of the TRIFECTA Performance 2013--2019 Cadillac ATS 8-Speed and 6-Speed automatic transmission TCM calibration software reprogramming:

  • 2017 and up ATS models with the 8-Speed automatic transmission and T87A transmission control module (TCM) DO NOT require an UNLOCK.
  • Improved vehicle drive modes (Tour, Sport, Winter)
  • Improved shift times in adverse shift patterns
  • Improved shift logic - shifts are progressive and purposeful
  • Full integration with factory predictive-shifting algorithm in Sport mode
  • Does not shorten transmission life or increase cooling requirements
  • Retains all OE diagnostics and TCM functionality
  • Retains all OE error code reporting and functionality



Additional Features:

  • Long term cumulative mileage testing, extended high load dyno testing.
  • Powertrain calibration has been tested and validated for various environments, such as cold/heat, elevation, and variations in fuel quality
  • Octane Adaptive construct enables multi-phased timing tables: Five distinct timing tables replace the OE GM implementation of high/low octane tables
  • Multi-dimensional Airflow Coefficient tables, adds air pressure bias and knock history overlay for enhanced accuracy in boost scenarios
  • Virtualized torque prediction coefficients recalculation model added
  • Airflow based commanded fuel ratio strategies added
  • Multi-stage knock sensor decay and recovery rate tables added

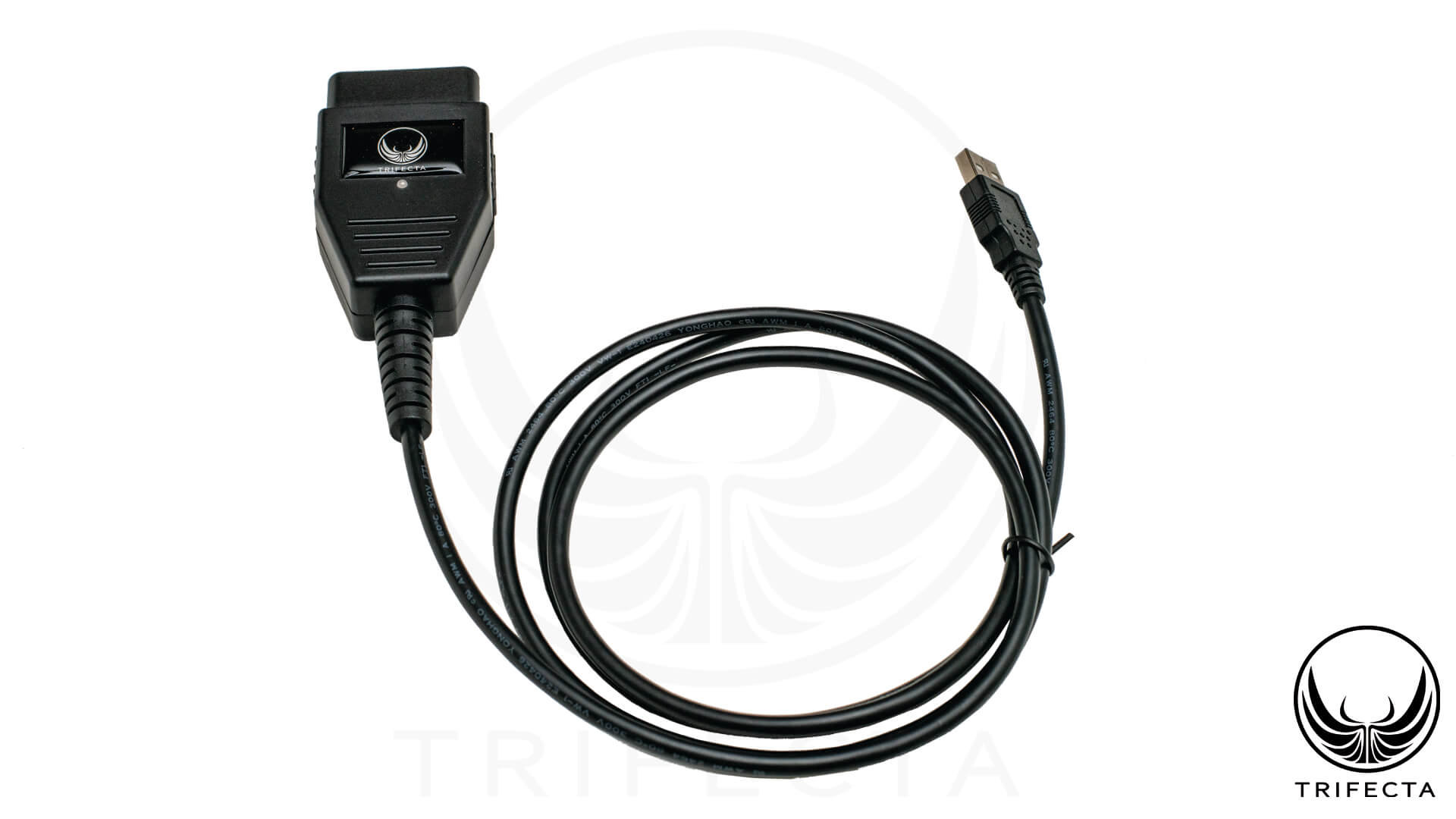

  • This powertrain calibration includes a TRIFECTA powertrain calibration file specific to your vehicle and includes an EZ Flash Cable (TFEZ010U)
  • Premium fuel required for maximum performance and economy

TRIFECTA Elite:

The TRIFECTA Elite Powertrain Recalibration includes calibration individualization, remote diagnostics, and comprehensive aftermarket hardware software integration support.  If you have any modifications which require tune customization, or have special requests, our Elite tier offers unlimited updates for mods/requests for as long as you own the vehicle. There are no extra charges once you choose Elite, and if you have Advantage already, you can simply upgrade to Elite for the difference in price at any time.
