    TRIFECTA Presents: LTG Forged Pistons, Cadillac CTS 2.0T MY2014+

    Sign in to follow this

      Trifecta Presents: MY2014+ Cadillac CTS 2.0T LTG Forged Pistons

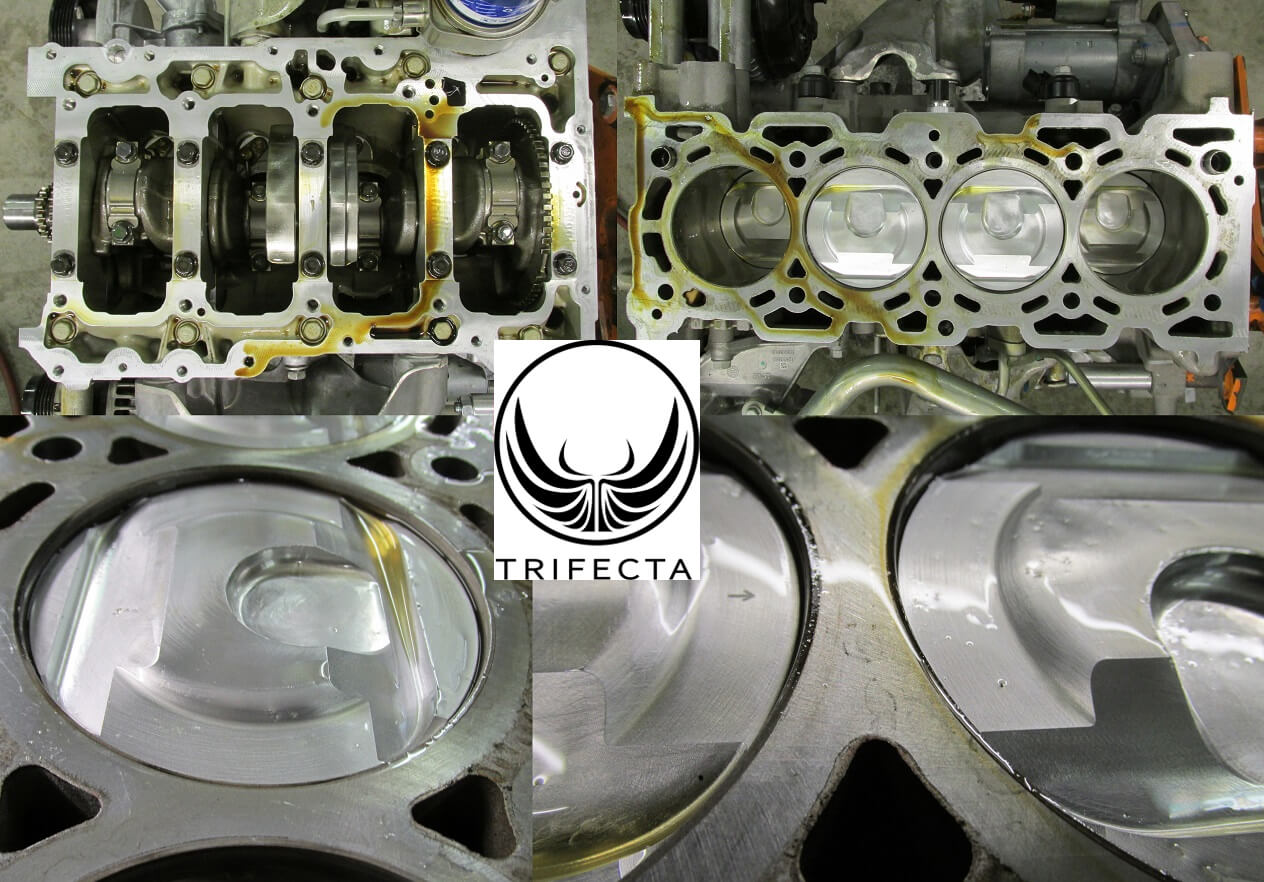

      This release post is a presentation of facilitating components that Trifecta offers to customers of vehicles with the LTG engine: You're looking at forged pistons that are rated for 1000+ HP in the LTG platform







    Design parameters (and specifications) of the Cadillac CTS 2.0T LTG Forged Pistons:



    -Stock piston dome and engine compression

    -Compatible with both the stock engine connecting rods and 4340 Forged Connecting Rods (Available separately)

    -Stress relieved 2618-T61 forged aluminum construction

    -Retains compatibility with both the high performance engine calibration and the stock engine calibration

    -Lightweight piston design

    -Improved piston rings and ringland design, with tool steel top rings, napier 2nd ring and improved oil control rings; hard anodized top ringland

    -Progressive staggered anti-detonation grooves (on top ringland)

    -Tapered piston skirt design to reduce piston rock

    -Low friction Zylan skirt coating for extended service life

    -Tool Steel wrist pins

    -When purchased together with matching 4340 Forged Connecting Rods, Piston and Rod combination will weigh within 1 gram of stock pistons (optional featureset); does not require rotating assembly rebalancing

    -Optional dry phosphate exterior finish

    -Pregapped piston rings for ease of assembly

    -Extended testing of 100,000 miles with over 100 hrs of wide open throttle testing

    -Made in the USA







    Additional information and availability:



    -Please contact Trifecta Performance: info@trifectaperformance.com or visit WOT-tuning: www.trifectaperformance.com for more information

    -Trifecta Specification Forged Pistons are available exclusively through Trifecta Performance and WOT-tuning; the Trifecta Specification is specific and proprietary to the Trifecta Performance Group, there are no 3rd parties authorized at present to resell Trifecta Specification Components (as of December 28th 2013): wholesale inquiries are welcome though provided that you are an existing and active Trifecta reseller

    -Trifecta Forged Pistons includes a Trifecta powertrain calibration file and flash loader device, installation kit, and is RTR with everything necessary for installation with the exception of additional engine coolant, engine oil, and other fluids

    -Powertrain calibrations currently exist for the US, EU, MEC, and Asia areas, with more regions to follow

    -Pricing TBA
